ABB DI818 Digital Input Module product in stock for you now.

Good news!

       ABB DI818 Digital Input Module product ABB Original and brand new items in stock.

                      ABB DI818

ABB DI818 Digital Input Module product specification.
The DI818 is a 32 channel 24 V digital input module for the S800 I/O. This module has 32 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 4.3mA at 24 V. The inputs are divided into two individually isolated groups with 16 channels and one voltage supervision input in each group.
Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears.The error signal can be read via the ModuleBus. The input channels can be digitally filtered. The different filter times that can be achieved are 2, 4, 8 and 16 ms. This means that noise pulses shorter than the filter time are filtered out, and pulses longer than 3, 6, 12 and 24 ms get through the filter.
The I/O signals are connected to the MTU with the process connector. Three different types of MTUs can be used. The extended MTU (TU830) and the compact MTU (TU818) provides 1-wire connection to the sensors. The compact MTU (TU819) has two D-sub 25 pin connectors for interfacing with the process



Other related models for ABB DI818 Digital Input Module as below
ABB AI801 Analog Input Module, 0(4)...20 mA
ABB AI810 Analog Input Module, 0(4)...20 mA, 0(2)...10 V
ABB AI815 Analog Input Module
ABB AI820 Differential Analog Input Module, +/- 20 mA, +/- 10 V, +/- 5 V (4...20 mA, 2...10 V, 1...5 V)
ABB AI825 Galvanic Isolated Analog Input Module
ABB AI830/AI830A RTD Input Module
ABB AI835/AI835A Thermocouple/mV Input Module
ABB AI843 Thermocouple/mV Input Module
ABB AI845 Analog Input Module, single or redundant
ABB AI880/AI880A High Integrity Analog Input Module
ABB AO801 Analog Output Module, 0(4)...20 mA
ABB AO810/AO810V2 Analog Output Module, 0(4)...20 mA
ABB AO815 Analog Output Module
ABB AO820 Galvanically Isolated Bipolar Analog Output Module
ABB AO845/AO845A Analog Output Module, Single or Redundant
ABB DI801 Digital Input Module, 24 V, Current Sinking
ABB DI802 Digital Input Module, 120 V a.c./d.c, Current Sinking
ABB DI803 Digital Input Module, 230 V a.c./d.c, Current Sinking
ABB DI810 Digital Input Module, 24 V, Current Sinking
ABB DI811 Digital Input Module, 48 V, Current Sinking
ABB DI814 Digital Input Module, 24 V, Current Sourcing
ABB DI818 Digital Input Module, 24 v, Current Sinking
ABB DI820 Digital Input Module, 120 V a.c./d.c
ABB DI821 Digital Input Module, 230 V a.c./d.c
ABB DI825 Digital Input Module, 125 V d.c with SOE
ABB DI828 Digital Input Module
ABB DI830 Digital Input Module, 24 V d.c. with SOE, Current Sinking
ABB DI831 Digital Input Module, 48 V d.c. with SOE, Current Sinking
ABB DI840 Digital Input Module
ABB DI880 High Integrity Digital Input Module
ABB DI885 Digital Input Module, 24 V /48 V d.c. with SOE, Current Sinking
ABB DO801 Digital Output Module 24 V, 0.5 A, Current Sourcing
ABB DO802 Digital Output Module, 24-250 V, Relay Normally Open
ABB DO810 Digital Output Module 24 V, 0.5 A Current Sourcing
ABB DO814 Digital Output Module 24 V, 0.5 A, Current Sinking
ABB DO815 Digital Output Module 24 V, 2 A, Current Sourcing
ABB DO818 Digital Output Module 24 V, 0.5 A, Current Sinking
ABB DO820 Digital Output Module, Relay Normally Open
ABB DO821 Digital Output Module, Relay Normally Closed
ABB DO828 Channel Relay Output Module
ABB DO840 Digital Output Module
ABB DO880 High Integrity Digital Output Module
ABB DP820 Incremental Pulse Counter Module
ABB DP840 Incremental Pulse Counter Module

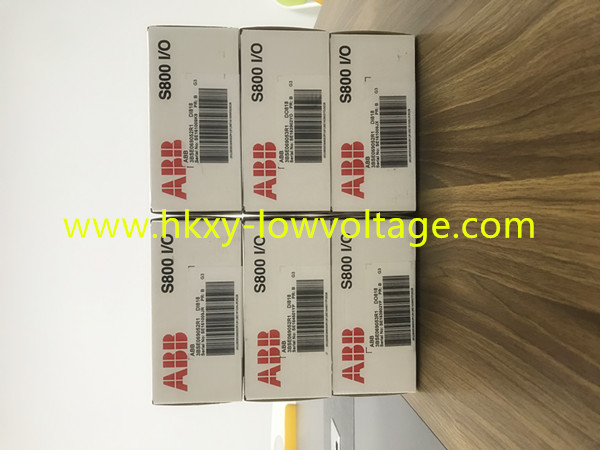

ABB DI818 Digital Input Module product details picture.

 ABB DI818 Digital Input Module



Dear customer, if you have any question about our ABB S800 series modules, please feel free to contact me here.
I'll offer you more details.
