Selecting Yokogawa EJX110A-EMS4G-U19EN/KS21/CA/M11/T13/N4/HC for DP Service

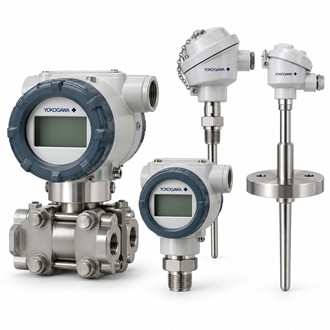

Yokogawa EJX110A-EMS4G-U19EN/KS21/CA/M11/T13/N4/HC is an EJX110A DPharp differential pressure transmitter configuration. Establish normal and maximum differential pressure, static pressure, required span and process fluid before comparing the EJX110A-EMS4G-U19EN/KS21/CA/M11/T13/N4/HC code with an installed unit. For level or flow applications, also document vessel geometry, density assumptions or primary-element sizing and installation.
Performance and capsule selection
Yokogawa publishes EJX110A reference performance figures including ±0.04% of span accuracy and 90 ms primary-variable response, with options and operating conditions affecting the applicable rating. For EJX110A-EMS4G-U19EN/KS21/CA/M11/T13/N4/HC, select a measurement capsule and calibrated range suited to the actual span; verify turndown, overpressure, static pressure, damping and any required diagnostics against the current specification.
Specification snapshot
| Selection point | Specification / confirmation |
|---|---|
| Representative model | EJX110A-EMS4G-U19EN/KS21/CA/M11/T13/N4/HC |
| Primary variable | Differential pressure |
| Secondary variable | Static pressure |
| Published reference accuracy | ±0.04% of span; option and conditions apply |
| Response | Published primary-variable response: 90 ms |
| Selection | Confirm capsule, wetted parts, output, process connection and approvals |
Wetted parts, connections and output
The full order code for EJX110A-EMS4G-U19EN/KS21/CA/M11/T13/N4/HC must be checked against wetted-part materials, process connection, manifold, output protocol, display and certification requirements. Do not infer every suffix character without the exact manufacturer code definition. Review the installed impulse lines or seal assembly, vent/drain orientation, hazardous-area requirements and receiving-system signal before finalizing a replacement.
Installation and commissioning
During commissioning, validate zero under the prescribed equalized condition, correct high/low connections, leak integrity and output scaling at the host. Keep the configured range and as-left calibration with the instrument record. The related EJX110A code below is another configuration for comparison; send the complete nameplate, duty, range, materials and interface requirements when requesting EJX110A-EMS4G-U19EN/KS21/CA/M11/T13/N4/HC.
Related model configurations
- EJX110A-JVS4G-912DB-SU22
Information for model verification
For EJX110A-EMS4G-U19EN/KS21/CA/M11/T13/N4/HC, include the complete nameplate code, application, interface and operating conditions in an enquiry. Retain EJX110A-EMS4G-U19EN/KS21/CA/M11/T13/N4/HC with the equipment record and verify the exact specification before replacement or project release. Record the exact model code EJX110A-EMS4G-U19EN/KS21/CA/M11/T13/N4/HC in the purchase request.
