ABB VD4 12.06.16 p275 vacuum circuit breaker Selection Notes for 630 A, 16 kA Primary Distribution

ABB VD4 12.06.16 p275 vacuum circuit breaker is an ABB VD4 medium-voltage vacuum circuit breaker designation. ABB rating tables identify this type as a 12 kV breaker with 630 A rated uninterrupted current, 16 kA rated short-circuit breaking current, and the p275 dimensional arrangement. These four details are the starting point for engineering and procurement review, not the end of the selection process.

Model code decoded at a glance

Manufacturer	ABB
Breaker family	VD4 medium-voltage vacuum circuit breaker
Rated voltage	12 kV
Rated uninterrupted current	630 A
Rated short-circuit breaking current	16 kA
Dimensional code	p275 — 275 mm pole spacing series
Interrupting technology	Vacuum interrupters embedded in resin poles



The rating table confirms the electrical class, but a replacement must also match the switchgear panel. Two breakers with the same 12 kV, 630 A and 16 kA ratings can still differ in mechanical execution, overall dimensions, isolating contacts, shutter interface, racking arrangement, wiring plug, auxiliary contacts, releases, spring-charging motor, and interlocking scheme.

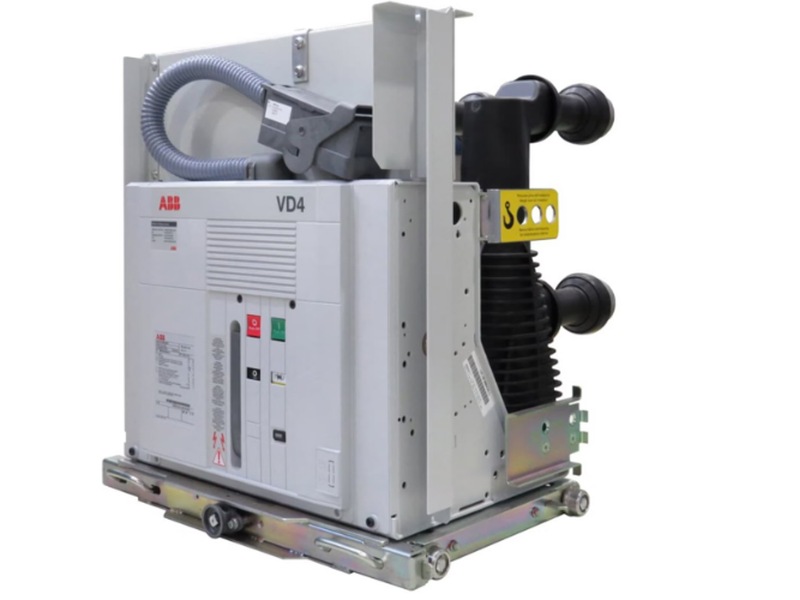

Reference image: ABB VD4 vacuum circuit breaker shown for visual identification. The photograph is not a substitute for confirming the nameplate of ABB VD4 12.06.16 p275 vacuum circuit breaker, its fixed or withdrawable execution, contact arms, truck interface, secondary plug, control voltage, interlocks, and accessories.

Why VD4 uses vacuum interruption

ABB VD4 circuit breakers use vacuum interrupters embedded in resin poles. When the contacts separate, the arc is extinguished around the natural current zero and the vacuum gap rapidly recovers dielectric strength. Embedding the interrupter helps protect the pole assembly against shock, dust, condensation, and other external influences encountered in indoor medium-voltage equipment.



The VD4 family uses a mechanically operated spring mechanism for primary distribution applications. The interrupter and mechanism design supports switching and protection duties for equipment such as cables, transformers, motors, capacitor banks, and distribution feeders when the selected rating and switchgear application are suitable.

What p275 does—and does not—confirm

In the ABB VD4 12.06.16 p275 vacuum circuit breaker designation, p275 points to the 275 mm pole-spacing dimensional series used in ABB technical tables. This information is important when checking phase spacing and panel fit. However, p275 alone does not prove that a breaker will rack into an existing cassette or connect correctly to the primary and secondary interfaces.



• Confirm whether the installed breaker is fixed, withdrawable, or supplied on a specific truck.
• Compare overall height, width, depth, pole centers, terminal positions, and contact-arm dimensions.
• Check the cassette, shutters, service/test positions, earthing-switch interlock, and racking mechanism.
• Verify the secondary plug pinout and all auxiliary circuit requirements.

Electrical and control checks before replacement

A practical VD4 replacement review should separate the primary electrical rating from the control and mechanical configuration. The nameplate, wiring diagram, panel documentation, and old breaker photographs should be reviewed together.



1. Verify 12 kV rated voltage, 630 A rated current, and 16 kA short-circuit rating.
2. Confirm rated frequency, insulation level, operating sequence, and making/withstand ratings.
3. Record closing coil, opening release, undervoltage release, and spring-charging motor voltages.
4. Check auxiliary contact quantity, anti-pumping circuit, lockout coils, and position contacts.
5. Compare the p275 mechanical arrangement and all switchgear interface dimensions.
6. State whether the requirement is for an identical replacement, retrofit kit, spare breaker, or new panel.



For an urgent outage, providing only the phrase ABB VD4 12.06.16 p275 vacuum circuit breaker may not be enough to release a safe replacement. A clear nameplate image, breaker side views, secondary plug photograph, truck or cassette details, and the panel model can prevent delays caused by an incompatible configuration.

Buyer questions answered

What ratings are represented by VD4 12.06.16 p275?

ABB technical tables list 12 kV rated voltage, 630 A rated uninterrupted current, 16 kA short-circuit breaking current, and the p275 dimensional arrangement.

Is p275 the breaking capacity?

No. The breaking-current element is 16 kA in this designation. p275 refers to the dimensional or pole-spacing series.

Can a VD4 with matching electrical ratings always replace the installed breaker?

No. Mechanical interfaces, contact layout, control voltage, auxiliary wiring, interlocks, truck design, cassette compatibility, and accessories must also match or be covered by an engineered retrofit.

What is the most useful information for a quotation?

Send the complete type designation, serial and nameplate details, quantity, panel model, fixed or withdrawable execution, control voltage, required releases, wiring diagram, photographs, destination, and target delivery date.

RFQ support for ABB VD4 circuit breakers

HKXY can review ABB VD4 12.06.16 p275 vacuum circuit breaker requests for plant maintenance, switchgear spare planning, outage replacement, retrofit evaluation, and export quotation. Related VD4 ratings should be listed as separate line items so that current rating, breaking capacity, pole spacing, mechanical execution, and control accessories remain clear during technical and commercial review.
