Fluke 771 Milliamp Process Clamp Meter 4-20 mA for sale now.

description:Fluke 771 Milliamp Process Clamp Meter 4-20 mA signal measurements....
BASIC INFO
Product overview

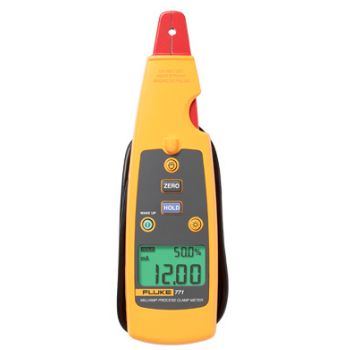

Fluke 771 Milliamp Process Clamp Meter 4-20 mA signal measurements.
                       Fluke 771


Fluke 771 Milliamp Process Clamp Meter product overview.

Are you spending time:

  • Taking mA measurements by removing a wire and breaking the loop
  • Calling the control room to isolate a loop
  • Testing analog input/output on a console
  • Troubleshooting devices with mA inputs and outputs
  • Repairing intermittent or erratic 4-20 mA loops
  • Going back to the shop to get extra tools

If you need more time in your busy day take a good look at the Fluke 771 mA Clamp Meters. It’s designed to save you time, and money, by eliminating time wasting activities. Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system.


Fluke 771 Milliamp Process Clamp Meter product features.

Features

  • Best in class 0.2% accuracy
  • 0.01 mA resolution and sensitivity
  • Measure 4 to 20 mA signals without “breaking the loop”
  • Measure mA signals for PLC and control system analog I/O
  • Dual backlit display with both mA measurement and percent of 4 to 20 mA span
  • Measurement Spotlight illuminates hard to see wires in dark enclosures
  • Detachable clamp with extension cable for measurements in tight locations
  • Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
  • Automatically change the 4 to 20 mA output for remote testing
  • Power saving features, auto-off, backlight timeout extend battery life
  • Hold function captures and displays changing measurements

Fluke 771 Milliamp Process Clamp Meter product specification.
Specifications
Diameter of measurable conductor 0.177 in or 4.5 mm max
Operating temperature -10 to 50°C
Storage temperature -25 to 60°C
Operating humidity < 90% @ < 30°C, < 75% @ 30 to 55°C
Operating altitude 0 to 2000 m
IP rating IP 40
Size 59 x 38 x 212 mm (2.32 x 1.5 x 8.35 in)
Weight 260 G, (9.1 oz)
Vibration Random 2 g, 5 to 500 Hz
Shock 1 m drop test (except the jaw)
EMI/RFI Meets EN61326-1
For current measurement w/ JAW, add 1 mA to
specification for EMC field strengths of 1 V/m up to 3 V/m.
Temperature coefficient 0.01% °C
(< 18°C or > 28°C)
Power, battery life (2) AA 1.5 V Alkaline, IEC LR6, 40 hours typical
Warranty Three years for electronics
One year for cable and clamp assembly
Functional Specifications
mA measurement
(measured by clamp)
Resolution / range 0 to 20.99 mA
Accuracy 0.2% + 2 counts
Resolution / range 21.0mA to 100.0 mA
Accuracy 1% + 5 counts
