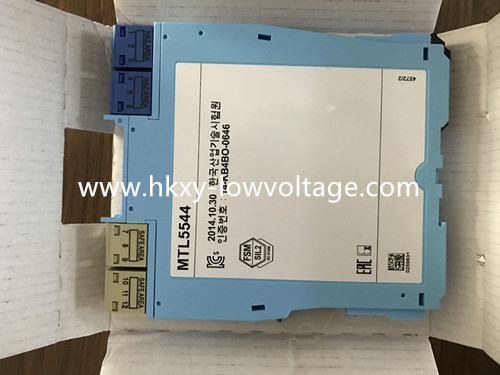

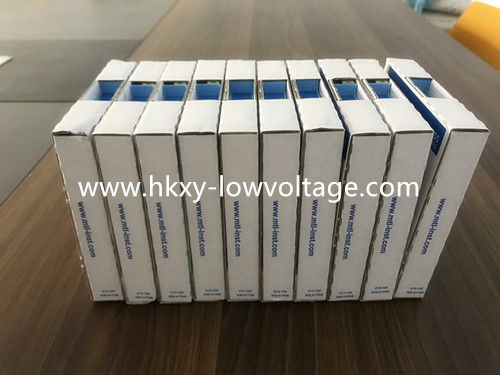

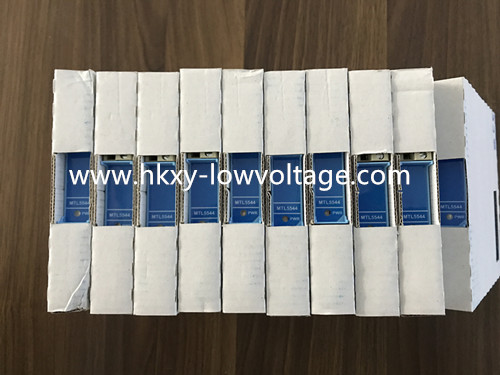

In stock MTL5544 repeater power supply, original MTL5544 barrier made from England.

In stock MTL5544 repeater power supply, original MTL5544 barrier made from England.

In stock MTL5544 repeater power supply, original MTL5544 barrier made from England.

MTL5544 isolated barrier

MTL5544 repeater power supply product introduction:

MTL4544/S – MTL5544/S REPEATER POWER SUPPLY 2-channel, 4/20mA, HART®, 2- or 3- wire transmitters

The MTLx544 provides fully-floating dc supplies for energising two conventional 2-wire or 3-wire 4/20mA or HART transmitters located in a hazardous area, and repeats the current in other circuits to drive two safe-area loads. For smart transmitters, the unit allows bi-directional transmission of digital communication signals superimposed on the 4/20mA loop current. Alternatively, the MTLx544S acts as a current sink for a safe-area connection rather than driving a current into the load. Separately powered current sources, such as 4-wire transmitters, can be connected but will not support HART communication.

SPECIFICATION

See also common specification

Number of channels

Two

Location of transmitter

Zone 0, IIC, T4–6 hazardous area if suitably certified

Div. 1, Group A hazardous location

Safe-area output

Signal range: 4 to 20mA

Under/over-range: 0 to 24mA

Safe-area load resistance (MTLx 544)

@ 24mA: 0 to 360Ω

@ 20mA: 0 to 450Ω

Safe-area load (MTLx544S)

Current sink: 600Ω max.

Maximum voltage source: 24V dc

Safe-area circuit output resistance: > 1MΩ

Safe-area circuit ripple

< 50µA peak-to-peak

Hazardous-area input

Signal range: 0 to 24mA (including over-range)

Transmitter voltage: 16.5V at 20mA

Transfer accuracy at 20°C

Better than 15µA

Temperature drift

< 0.8µA/°C

Response time

Settles to within 10% of final value within 50µs

Communications supported

HART (terminals 1 & 2 and 4 & 5 only)

LED indicator

Green: power indication

Maximum current consumption (with 20mA signals)

96mA at 24V dc

Power dissipation within unit (with 20mA signals)

MTLx544 1.4W @ 24V dc

MTLx544S 1.9W @ 24V dc

Safety description (each channel)

Terminals 2 to 1 and 3, and 5 to 4 and 6:

Uo=28V Io=93mA Po=651mW Um = 253V rms or dc

Terminals 1 to 3 and 4 to 6:

Simple apparatus ≤1.5V, ≤0.1A and ≤25mW; can be connected

without further certification into any IS loop with an open-circuit

voltage <28V



MTL5500 Series Barriers

Part Number

MTL5501-SR, MTL5510, MTL5510B, MTL5511, MTL5513, MTL5514, MTL5514D, MTL5516C, MTL5517, MTL5521, MTL5522, MTL5523, MTL5523V, MTL5523VL, MTL5524, MTL5525, MTL5526, MTL5531, MTL5532, MTL5533, MTL5541, MTL5541A, MTL5541AS, MTL5541S, MTL5544, MTL5544A, MTL5544AS, MTL5544D, MTL5544S, MTL5546, MTL5546Y, MTL5549, MTL5549Y, MTL5561, MTL5575, MTL5576-RTD, MTL5576-THC, MTL5581, MTL5582





MTL5500 series

Part NumberDescription

Digital Input

MTL5501-SR 1ch DI failsafe solid-state output + LFD alarm

MTL55104ch DI solid-state ouput

MTL5510B4ch DI multifunction solid-state output

MTL55111ch DI relay output

MTL5513 2ch DI solid-state output

MTL5514 1ch DI relay output + LFD alarm

MTL5514D 1ch switch/prox input, dual output relay

MTL5516C2ch DI with changeover relay output

MTL55172ch DI relay output + LFD alarm

Digital Output

MTL5521Loop powered solenoid driver, IIC

MTL5522 Loop powered solenoid driver, IIB

MTL5523Solenoid driver with LFD

MTL5523V - VL Solenoid/Alarm driver with voltage control

MTL5524 Switch operated solenoid driver

MTL5525Loop powered solenoid driver low power

MTL55262ch switch operated relay

Analogue Input

MTL55411ch 2/3 wire Transmitter repeater

MTL5541A 1ch Transmitter repeater, passive input

MTL5541AS1ch Transmitter repeater, passive input, current sink

MTL5541S1ch 2/3 wire Transmitter repeater, current sink

MTL5544 2ch 2/3 wire Transmitter repeater

MTL5544A 2ch Transmitter repeater, passive input

MTL5544AS 2ch Transmitter repeater, passive input, current sink

MTL5544D1ch 2/3 wire Transmitter repeater, dual output

MTL5544S2ch 2/3 wire Transmitter repeater, current sink

Analogue Output

MTL55461ch 4-20mA smart isolating driver + LFD

MTL5546Y 1ch 4-20mA smart isolating driver + oc LFD

MTL55492ch 4-20mA smart isolating driver + LFD

MTL5549Y2ch 4-20mA smart isolating driver + oc LFD

Temperature Input

MTL55751ch Temperature converter, RTD / THC with alarm

MTL5576-RTD2ch Temperature converter, RTD

MTL5576-THC2ch Temperature converter, THC

MTL55811ch mV/THC isolator for low-level signals

MTL55821ch resistance isolator

Pulse and Vibration

MTL5531 1ch vibration probe interface

MTL5532 1ch pulse isolator, digital or analogue output

MTL55332ch vibration probe interface

Fire and Smoke

MTL5561 2ch loop-powered, for fire and smoke detectors

General

MPA5500 85 - 265V ac power adaptor

MTL5599Dummy isolator

MTL599124V dc power supply
